Mobile Shredder

> A mobile shredder machine is a type of industrial equipment that is designed to shred or destroy various materials into smaller pieces.

> Mobile shredder are often used for shredding large objects such as wood, plastic, metal, and other waste materials.

> Mobile shredder machines are mounted on trucks or trailers, making them easy to transport to different locations where shredding or destruction is required.

> They are commonly used in recycling, waste management, and construction industries.


Product Detail

Parameter

Video

Case&Effects

FAQ

A mobile shredder machine is a powerful industrial tool used to shred and destroy various materials such as paper, cardboard, plastic, wood, metal, and other waste materials. These machines are mounted on wheeled chassis, allowing them to be easily transported to different locations where shredding is required.

Mobile shredder machines are commonly used in recycling facilities, industrial sites, construction sites, and for on-site document destruction services. They are equipped with sharp rotating blades or hammers that effectively tear and shred materials into small pieces, ensuring the destruction and secure disposal of confidential or sensitive information.

application

These machines come in various sizes and configurations to accommodate different types and volumes of materials. Some mobile shredder machines are equipped with advanced features such as automatic feeding systems, remote control operation, and safety mechanisms to ensure efficient and safe shredding operations.

Overall, mobile shredder machines play a crucial role in waste management, recycling, and data security by providing a convenient and efficient way to destroy and dispose of materials in a secure and environmentally friendly manner.

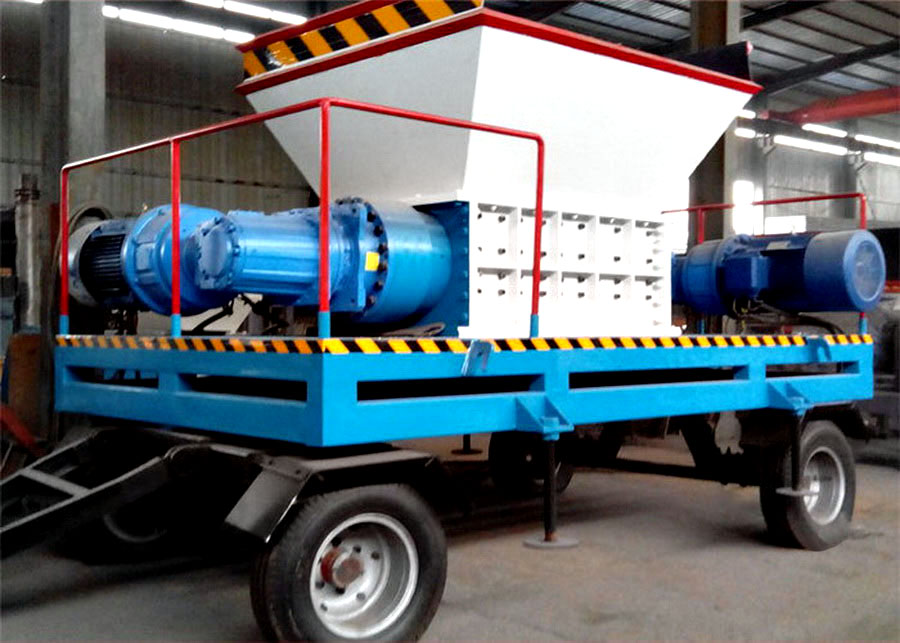

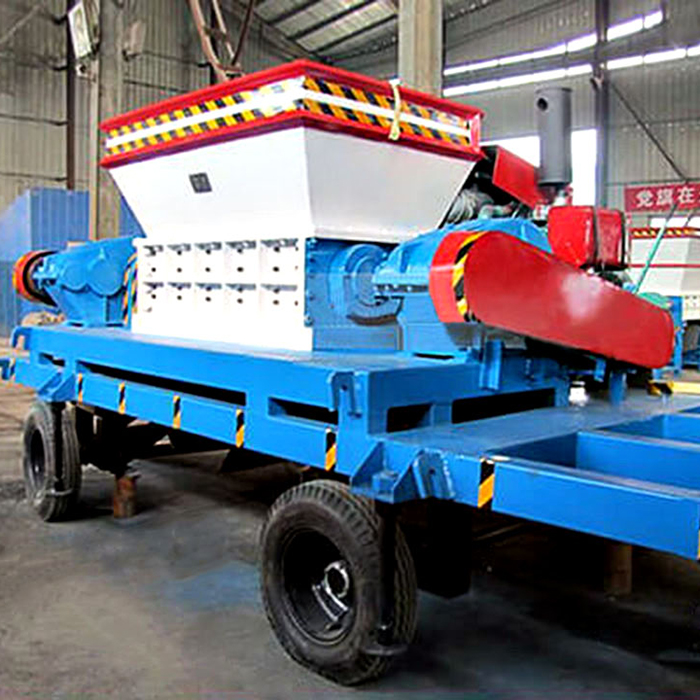

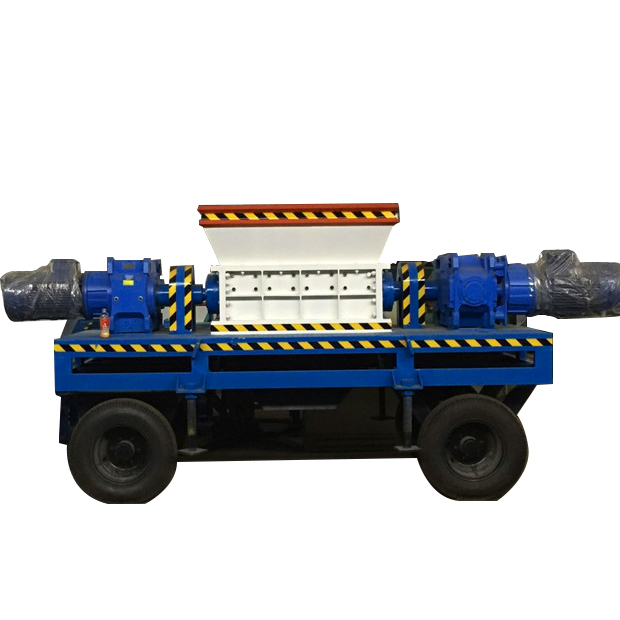

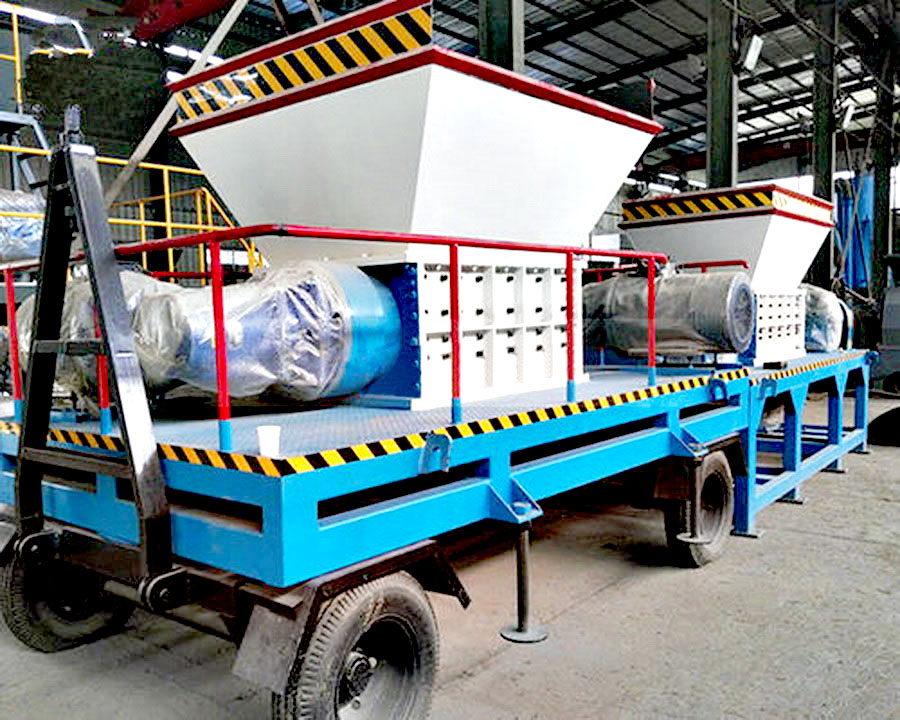

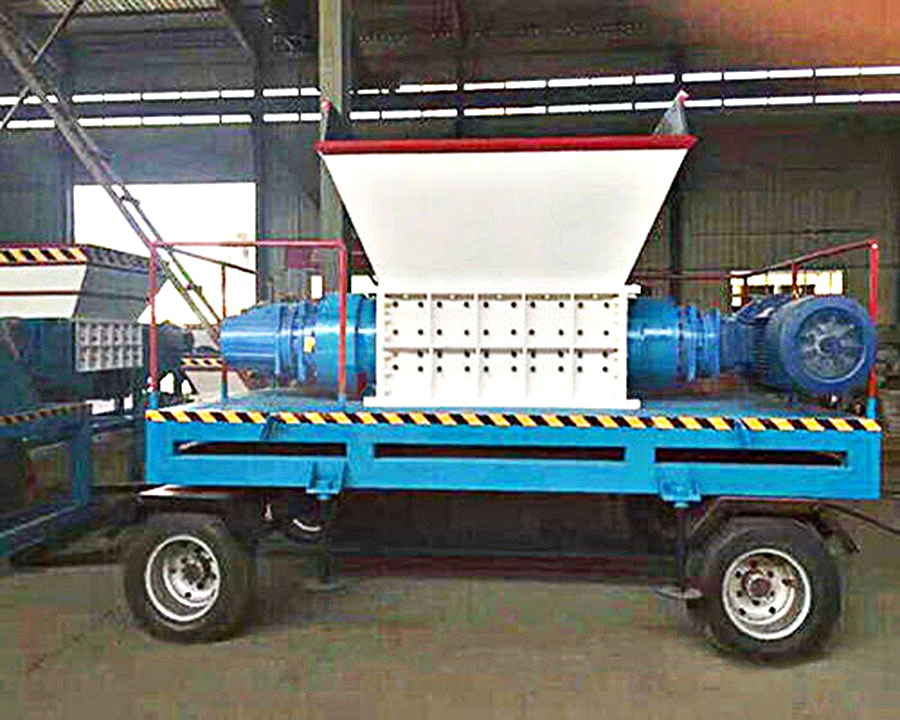

Mobile Shredder Machine

1.1

Bearing seal is unique multiple combination sealing structure effectively blocks the contact of broken material and grease. The liquid material can protect the bearing, gear, ensuring continuous and stable operation of machine.

1.2

Feed hopper: high quality carbon steel plate, laser precision cutting. The optimal slope design effectively reduces feed shocks and allows for smooth feeds.

1.3

Motor: Chinese or international famous brand, 100% copper movement, strong power, long life

1.4

Reduction Gears Reducer: saving space, withstanding overload capacity. It is low energy consumption, high performance, and efficiency up to 95 or more. Small vibration, low noise, select excellent section steel material, steel cast-iron box, gear surface after high-frequency heat treatment

1.5

The blade is made of alloy tool steel, has a high hardness of quenching, more abrasion and impact resistance, longer service life, reducing the frequency of blade replacement.With a multi-teeth design,the shredding effect is significant, Modern installation is more convenient to maintain.

1.6

The shredding chamber is processed by the overall CNC, with less error and high accuracy, The shredding chamber is a modular installation and the bolt is fixed to reduce vibration and response, Arc-sharped partitions are installed on both sides of the chamber to ensure smooth discharge and increase capacity.

How does mobile shredder machine work?

2.1

Discharge Out: Mobile shredder is a full pass rate machine without screen bottom. The shredder will discharge the material continuously according to the feeding condition.

Installation: The floorspace of the mobile shredder covers a smaller area and requires a 3-phase connection. In view of the installation of the whole machine, or retain power and shredding parts, almost no additional installation, is directly connected to the power supply. Our technician will guide the installation process.

2.2
2.3

Load: The open top allows continuous loading of waste. Fully automatic control of the PLC distributes power output according to feeding conditions. If overload occurs, the shredder will automatically flip over, and then continue to cycle.

Mobile Shredder Perfect for your Field

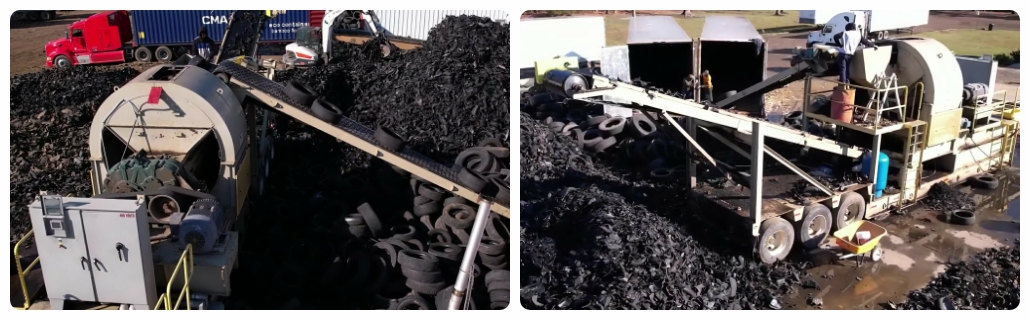

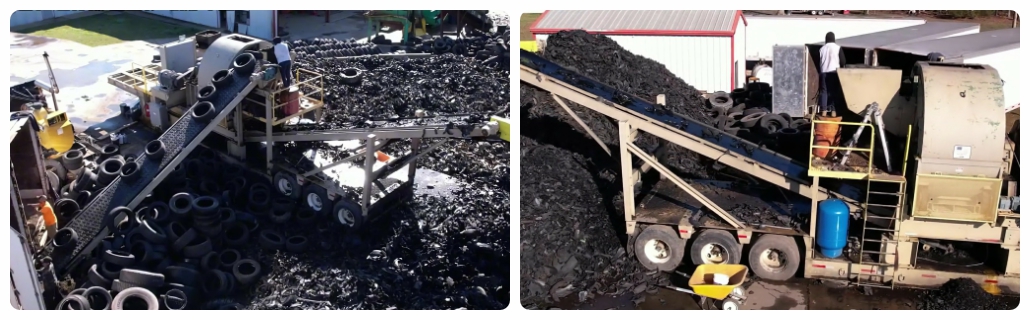

Mobile Shredding Machine for the Recycling Industry

Mobile Shredder for Logistics & Distribution Centres

Mobile Shredder in Large Supermarkets & City

3.1
3.2
3.3

> A mobile shredder strategically installed in a recycling facility becomes an integral part of the working process.Like Aluminum & Copper Recycling, Battery Recycling, E-Waste Recycling, General Waste Recycling, Medical Waste Recycling, Metal Recycling, Paper Shredding, Plastic Recycling,Textiles & Carpet Recycling, Tire Recycling, Wood Recycling and so on.
> The open top can be adapted to automate a continuous flow of trash maximizing the speed and efficiency of the operation. The fast cycle and continuous loading allow for shredding so many different materials per hour.

> Logistics and distribution centers process huge amounts of plastic and cardboard packaging as good as received and distributed.
> In order to increase recycling value, after separating, the shredding machine can shred them into blocks,then easy to store and transportation.

> Large supermarkets and living cities handle a huge volume of packaging waste from consumer goods, food, and other perishable items.
> A mobile shredding machine is the ideal shredder to appropriately handle large volumes of mixed recyclable waste. The process can easily be managed by regular staff.

Features & Benefits

Lowest Cost per Ton to Buy

4.1

1. Customize your mobile shredder line to meet your unique requirements
2. Invest in more equipment than you need
3. Get the right shredder for the job

Lowest Cost per Ton to Operate

4.2

1. High tolerances and precision cutting requires less horsepower
2. Built for smooth and efficient operation to last you decades
3. Engineered to be simple yet robust
4. More run time with less maintenance and hassle
5. Re-sharpenable and long-lasting blades

Lowest Cost per Ton to Maintain

4.3

1. Less mechanical interference for more machine up-time, more throughput, and fewer headaches
2. Leverage your own maintenance team- No specialty tools required
3. Quick blade change-out time
4. Blades last for roughly 1 million tires before needing sharpened

Optional Accessories for Mobile Shredder

In order to experience the optimal performance of the Industrial Shredder, we offer a wide variety of available optional accessories. These components, which include the hopper, in-feed conveyor, out-feed conveyor, and stand, are designed to enhance the overall performance of the industrial shredder so that it works at maximum capability. For more information on the other types of optional accessories that we have available, you can contact the sales team, who can help create the ideal shredding solution to your business.

5.1

Heavy-duty Seal Hopper

5.3

Observation Walk

5.5

Metal Separator

5.22

Plate Chain Conveyor

5.4

Hydraulic Press Design

5.6

Pulse Dust Collector


  • Previous:
  • Next:

  • Model 600-300-44-HD 800-400-60-HD 900-400-74-HD 1000-450-45-HD 1200-500-110-HD 1400-600-150-HD
    Shredding Box Adopts Upper And Lower Shells, Steel Plate Bolted Structure
    Size of Feeding Port(mm) 1000×800 12000×1000 1300×1000 1400×1100 1600×1200 1800×1400
    Working Capacity(T/H) About 1 About 2 About 3 About 4 About 6 About 10
    Rotational Speed 9-12 r/min (according to shredding material)
    Shredder Structure Square Steel Pipe, Steel Plate, Casting Parts
    Weight(Kg) 3200 4300 5800 8600 12500 15700
    Hardness of Blade HRC50°- HRC55°
    Type of Blade Outer Multi-Toothed, Inner Hexagon
    No-Load Noise In 1meter ≦75 db.(A)

    1 2

    Q1: Who are we?

    A: We are Di Hai Machinery and based in Henan, China, start from 1990, sell to Southeast Asia(35.00%), Africa (20.00%), South America(20.00%), Eastern Asia(18.00%), Mid East(7.00%). There are a total of about 51-100 people in our office.

    Q2: How to ensure the quality of the products used by your company?

    A: All materials in our company are by national standards and design requirements, clear quality standards, strengthened supply chain management, strict control procedures, comprehensive testing and customer feedback, and improved employee quality awareness.

    Q3: What can you buy from us?

    Recycling machines, including baler machines, shredder machines, crusher machines, tire recycling plants, plastic recycling plants, metal recycling plants, wood recycling plants, copper recycling plants, battery recycling plants, and paper tray-making plants.

    Q4: Why should you buy from us not from other suppliers?

    We have 20 years of experience in design and development, With rich experience in import and export trade. Installed and debugged locally, to teach technology, training, and maintenance of equipment. Guarantee on-time delivery according to contract requirements.

    Q5: What services can we provide?

    • Accepted Delivery Terms: FOB, CFR, EXW;
    • Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
    • Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
    • Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.

    Q6: Why Choose Us?

    • Several Year’s Experience We have rich experience in equipment manufacturing and our products have a high reputation both at home and abroad.
    • Manufacturer, Not Dealer Factory direct sale makes the price more competitive. Customers are always welcome to visit our factory for machine tests.
    • Fast Delivery We promise the goods can be shipped out on the delivery date after confirmation of the order.

    Q7: When we only purchase one shredding production line, can we use it to shred other scrap materials like?

    A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

    Q8: Which brand of motor will you use?

    A: We use Siemens or other High quality well-known brand.

    Q9: Will you dispatch the engineer to guide installation?

    A: Yes, according to the customer’s requirement, we will dispatch engineers to guide installation and training about the operation of the machine and we also provide online remote instruction.
