Metal Shredder

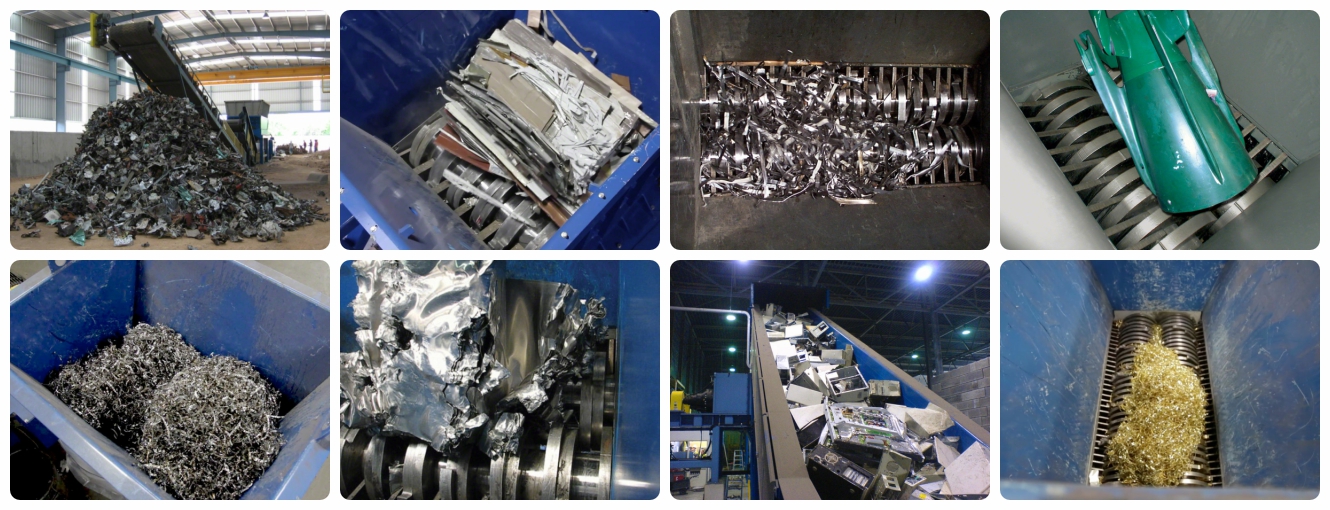

What materials can metal shredders shred?
FERROUS METALS
Common applications include thin gauge sheets, tin roofing and siding, stampings, turnings, formed parts, appliances and auto panels (not whole cars). Shredders are commonly used to remove airspace, increase density, reduce transportation costs and improve pricing.
ALUMINUM
Baled UBCs, sheet, taint tabor, slitter balls, coils, siding, HRB bales, wheels, extrusions, radiators and more. These are all applications where shredders have been widely used to process, liberate, densify and prepare materials for sorting, delacquering systems and furnaces.
COPPER, BRASS, OTHER NON-FERROUSCOPPER, BRASS, OTHER NON-FERROUS
Anodes, tubing, radiators, ICW, brass, silver-coated wire & plate, and more have been processed with shredders for liberation, recovery and densification ahead of furnaces.
SPECIALITY ALLOYS
Titanium, Zirconium, Magnesium, and blended and mixed alloys are among the things that shredders have processed for customers. In these cases, systems are typically purpose-built and proprietary.
APPLIANCES, E-SCRAP & AIR APPLIANCES, E-SCRAP & ASR
has extensive experience in the supply of processing systems that are designed to reduce these kinds of materials and separate commodities at the first point they become marketable.

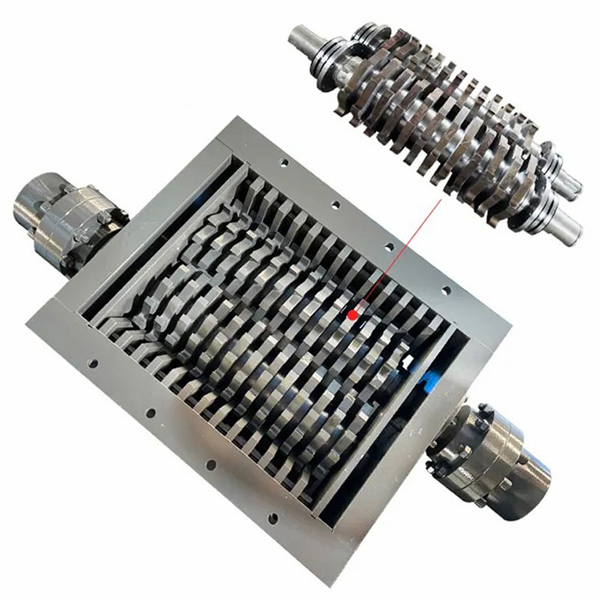

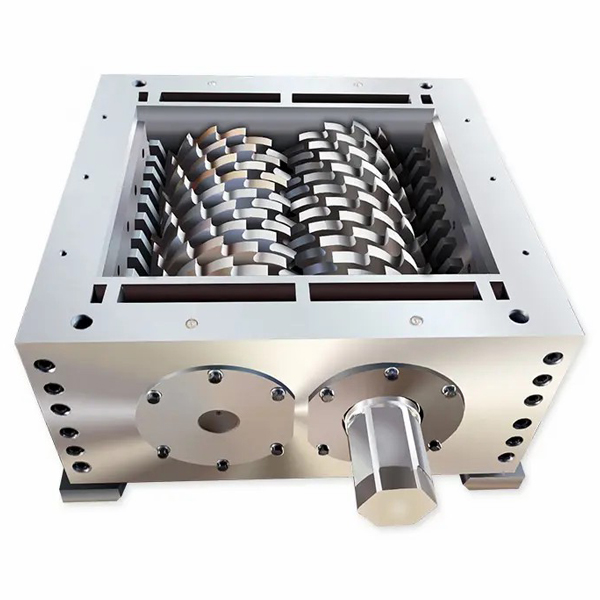

Blade of Metal Shredder Machine
> When the foreign object is bitten, it detects instantaneously and reverses. A sequence that minimizes the overload to the shredder.
> A powerful drive that synthesizes the output of two geared, with fewer reversals due to overloading the crusher.
> Highly energy-efficient, economical, and earth-friendly electric-powered crusher.
> Because it is a low-noise and low-vibration crusher, there is no need for secondary measures such as soundproofing.
> A combination of hexagonal shaft and hook number realizes strong crushing force.
> The shredding material allows the selection of the number of hooks, the thickness, and the layout, and particle size can be supported from coarse crushing to shredding.
> The shredding cutter is a structure that can be exchanged in the field, and maintenance and management are easy and low cost.

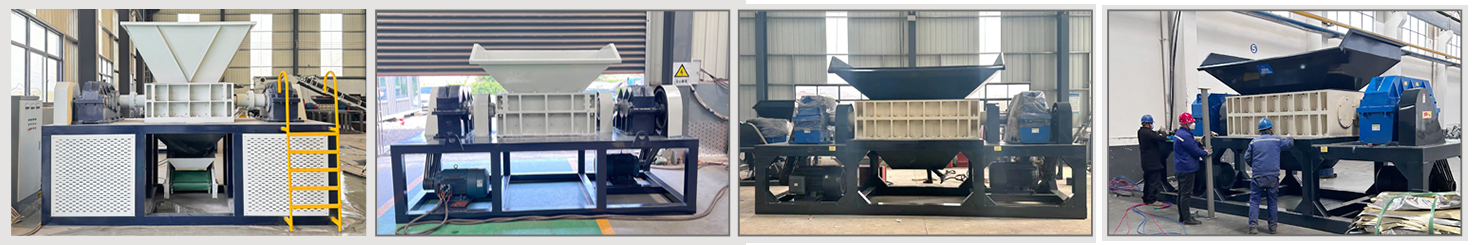

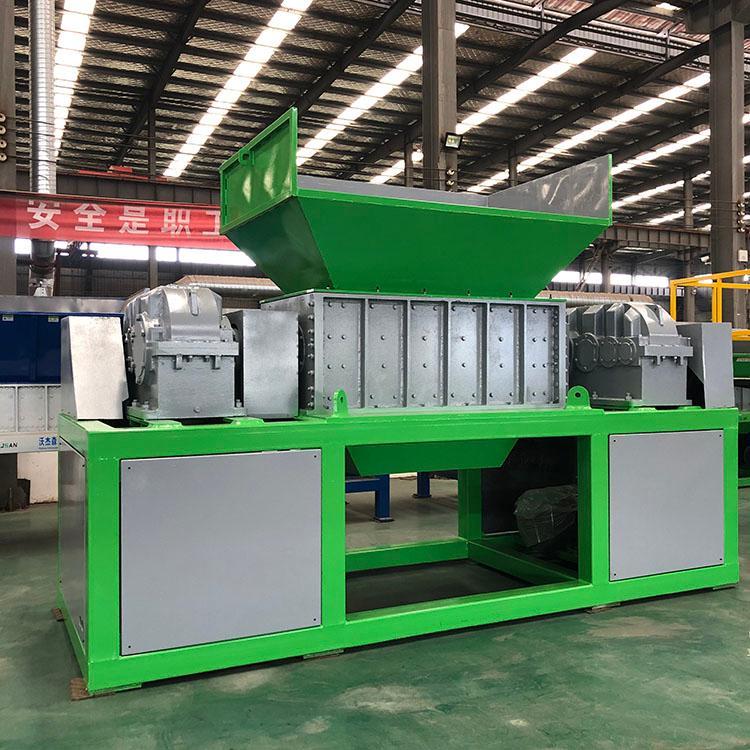

Di Hai Metal Shredder Machines
Engineered by our top experts in the shredding industry, your company can greatly benefit from the acquisition of the high-quality Industrial Shredder. This is a powerful shredder machine that provides you with excellent versatility and high performance, making it the ideal choice for your business. It is more than capable of shredding through the tougher materials, rendering them into a smaller, easier-to-manage shred size. This industrial shredder is designed to surpass your expectations, offering superior strength and optimal usage that allows you to outperform in the shredding industry. It provides improved efficiency while minimizing your footprint, allowing you to diversify your business.

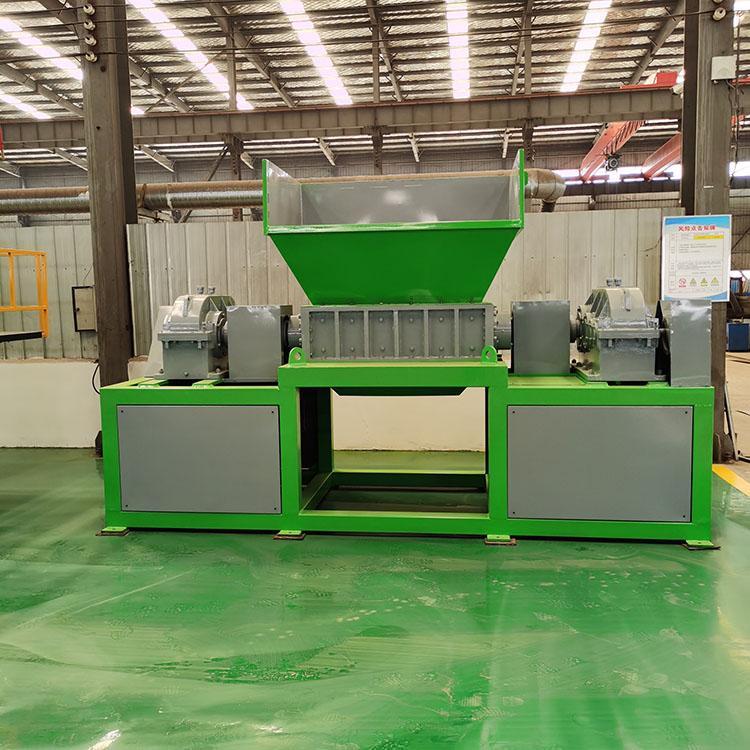

Details of Metal Shredder Machine
Bearing seal is unique multiple combination sealing structure effectively blocks the contact of broken material and grease. The liquid material can protect the bearing, gear, ensuring continuous and stable operation of machine.
Feed hopper: high quality carbon steel plate, laser precision cutting. The optimal slope design effectively reduces feed shocks and allows for smooth feeds.
Motor: Chinese or international famous brand, 100% copper movement, strong power, long life
Reduction Gears Reducer: saving space, withstanding overload capacity. It is low energy consumption, high performance, and efficiency up to 95 or more. Small vibration, low noise, select excellent section steel material, steel cast-iron box, gear surface after high-frequency heat treatment
The blade is made of alloy tool steel, has a high hardness of quenching, more abrasion and impact resistance, longer service life, reducing the frequency of blade replacement.With a multi-teeth design,the shredding effect is significant, Modern installation is more convenient to maintain.
The shredding chamber is processed by the overall CNC, with less error and high accuracy, The shredding chamber is a modular installation and the bolt is fixed to reduce vibration and response, Arc-sharped partitions are installed on both sides of the chamber to ensure smooth discharge and increase capacity.

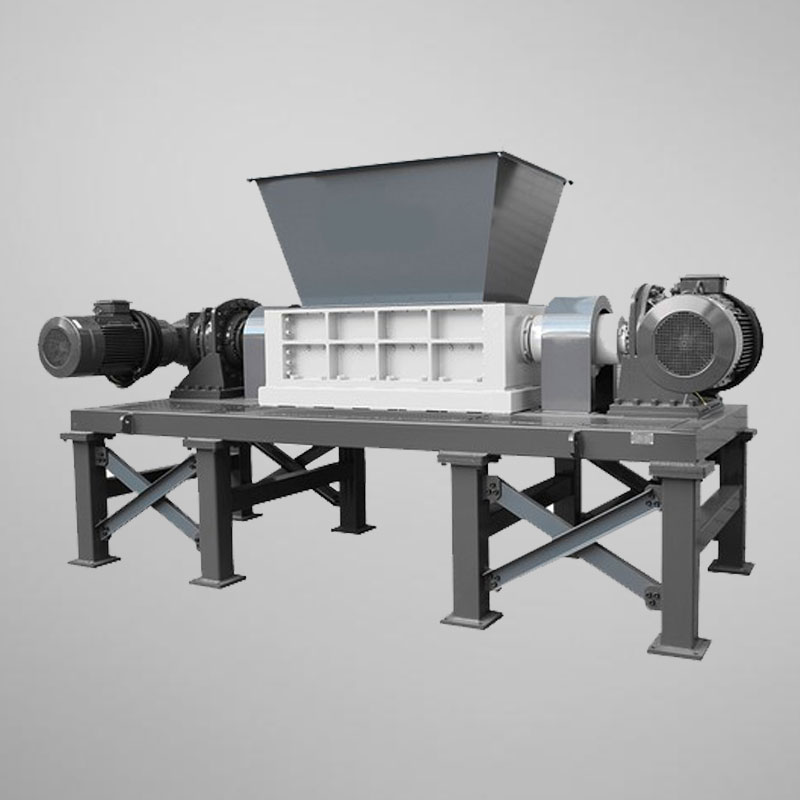

How does double shaft metal shredder work?
Discharge Out: Shredder is a full pass rate machine without screen bottom. The shredder will discharge the material continuously according to the feeding condition.
Installation: The floorspace of the shredder covers a smaller area and requires a 3-phase connection. In view of the installation of the whole machine, or retain power and shredding parts, almost no additional installation, is directly connected to the power supply. Our technician will guide the installation process.
Load: The open top allows continuous loading of waste. Fully automatic control of the PLC distributes power output according to feeding conditions. If overload occurs, the shredder will automatically flip over, and then continue to cycle.
Metal Shredding Machine Perfect for your Field

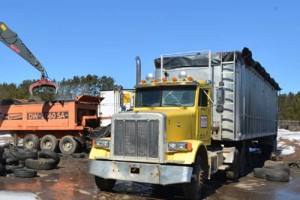

Double Shaft Shredding Machine for the Recycling Industry
Double Shaft Shredder for Logistics & Distribution Centres
Double Shaft Shredder in Large Supermarkets & City

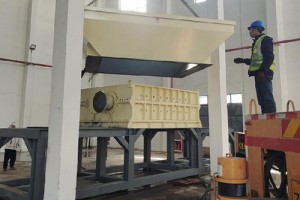

> A double shaft shredder strategically installed in a recycling facility becomes an integral part of the working process.Like Aluminum & Copper Recycling, Battery Recycling, E-Waste Recycling, General Waste Recycling, Medical Waste Recycling, Metal Recycling, Paper Shredding, Plastic Recycling,Textiles & Carpet Recycling, Tire Recycling, Wood Recycling and so on.

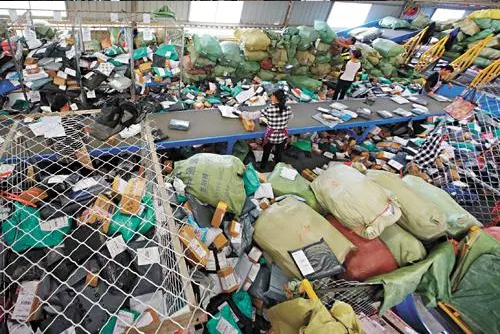

> Logistics and distribution centers process huge amounts of plastic and cardboard packaging as good as received and distributed.
> In order to increase recycling value, after separating, the shredding machine can shred them into blocks,then easy to store and transportation.
> Large supermarkets and living cities handle a huge volume of packaging waste from consumer goods, food, and other perishable items.
> A shredding machine is the ideal shredder to appropriately handle large volumes of mixed recyclable waste. The process can easily be managed by regular staff.
Features & Benefits of Metal Shredder
Lowest Cost per Ton to Buy
1. Customize your shredder line to meet your unique requirements
2. Invest in more equipment than you need
3. Get the right shredder for the job
Lowest Cost per Ton to Operate
1. High tolerances and precision cutting requires less horsepower
2. Built for smooth and efficient operation to last you decades
3. Engineered to be simple yet robust
4. More run time with less maintenance and hassle
5. Re-sharpenable and long-lasting blades
Lowest Cost per Ton to Maintain
1. Less mechanical interference for more machine up-time, more throughput, and fewer headaches
2. Leverage your own maintenance team- No specialty tools required
3. Quick blade change-out time
4. Blades last for roughly 1 million tires before needing sharpened
Optional Accessories for Metal Shredding Machine
In order to experience the optimal performance of the Industrial Shredder, we offer a wide variety of available optional accessories. These components, which include the hopper, in-feed conveyor, out-feed conveyor, and stand, are designed to enhance the overall performance of the industrial shredder so that it works at maximum capability. For more information on the other types of optional accessories that we have available, you can contact the sales team, who can help create the ideal shredding solution to your business.
Heavy-duty Seal Hopper
Observation Walk
Metal Separator
Plate Chain Conveyor
Hydraulic Press Design
Pulse Dust Collector
|
Model
|
600-300-44-HD
|
800-400-60-HD
|
900-400-74-HD
|
1000-450-45-HD
|
1200-500-110-HD
|
1400-600-150-HD
|
|
Shredding Box
|
Adopts Upper And Lower Shells, Steel Plate Bolted Structure
|
|||||
|
Size of Feeding Port（mm）
|
1000×800
|
12000×1000
|
1300×1000
|
1400×1100
|
1600×1200
|
1800×1400
|
|
Working Capacity(T/H)
|
About 1
|
About 2
|
About 3
|
About 4
|
About 6
|
About 10
|
|
Rotational Speed
|
9-12 r/min (according to shredding material)
|
|||||
|
Shredder Structure
|
Square Steel Pipe, Steel Plate, Casting Parts
|
|||||
|
Weight（Kg）
|
3200
|
4300
|
5800
|
8600
|
12500
|
15700
|
|
Hardness of Blade
|
HRC50°- HRC55°
|
|||||
|
Type of Blade
|
Outer Multi-Toothed, Inner Hexagon
|
|||||
|
No-Load Noise
|
In 1meter ≦75 db.(A)
|
|||||
Q1: Who are we?
A: We are Di Hai Machinery and based in Henan, China, start from 1990, sell to Southeast Asia(35.00%), Africa (20.00%), South America(20.00%), Eastern Asia(18.00%), Mid East(7.00%). There are a total of about 51-100 people in our office.
Q2: How to ensure the quality of the products used by your company?
A: All materials in our company are by national standards and design requirements, clear quality standards, strengthened supply chain management, strict control procedures, comprehensive testing and customer feedback, and improved employee quality awareness.
Q3: What can you buy from us?
Recycling machines, including baler machines, shredder machines, crusher machines, tire recycling plants, plastic recycling plants, metal recycling plants, wood recycling plants, copper recycling plants, battery recycling plants, and paper tray-making plants.
Q4: Why should you buy from us not from other suppliers?
We have 20 years of experience in design and development, With rich experience in import and export trade. Installed and debugged locally, to teach technology, training, and maintenance of equipment. Guarantee on-time delivery according to contract requirements.
Q5: What services can we provide?
- Accepted Delivery Terms: FOB, CFR, EXW；
- Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
- Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
- Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
Q6: Why Choose Us?
- Several Year’s Experience We have rich experience in equipment manufacturing and our products have a high reputation both at home and abroad.
- Manufacturer, Not Dealer Factory direct sale makes the price more competitive. Customers are always welcome to visit our factory for machine tests.
- Fast Delivery We promise the goods can be shipped out on the delivery date after confirmation of the order.
Q7: When we only purchase one shredding production line, can we use it to shred other scrap materials like?
A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.
Q8: Which brand of motor will you use?
A: We use Siemens or other High quality well-known brand.
Q9: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer’s requirement, we will dispatch engineers to guide installation and training about the operation of the machine and we also provide online remote instruction.
