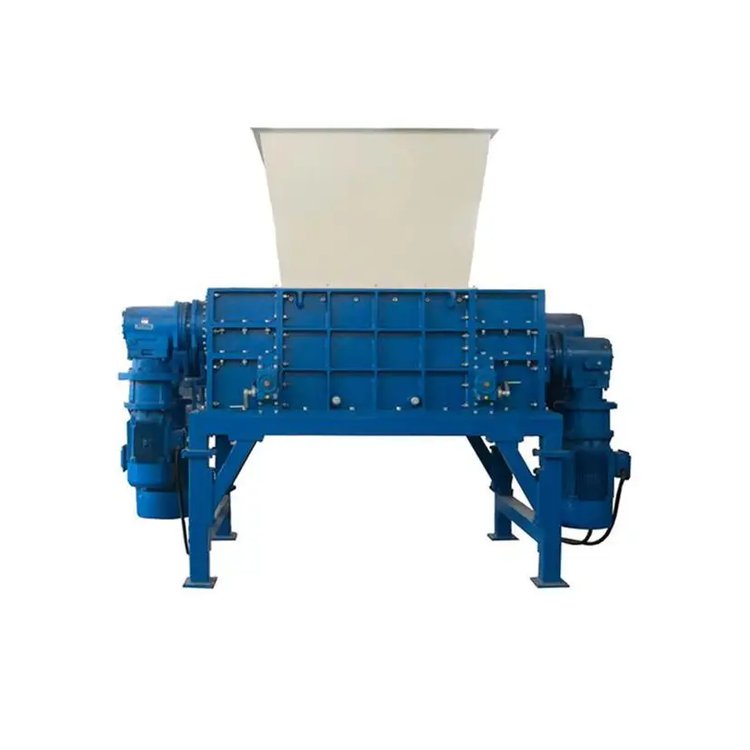

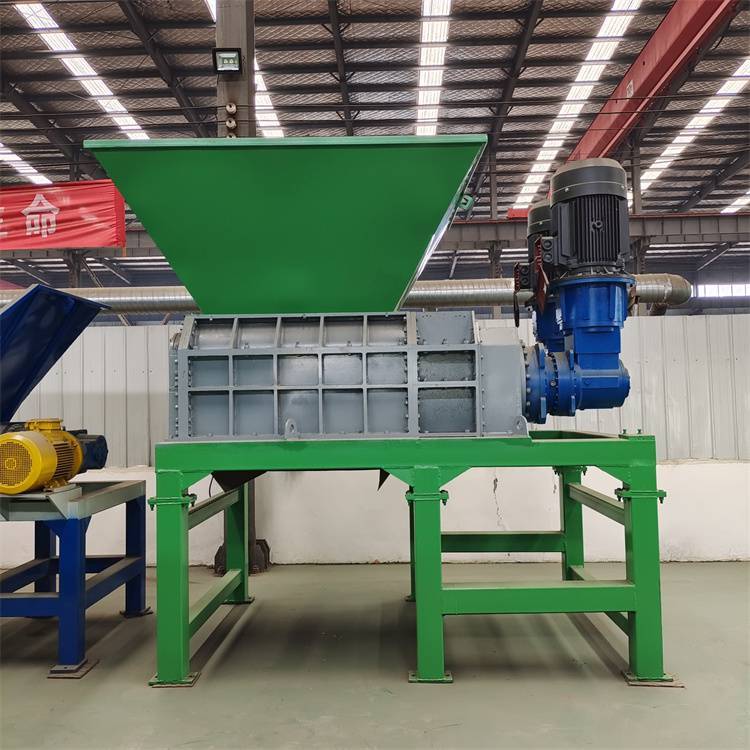

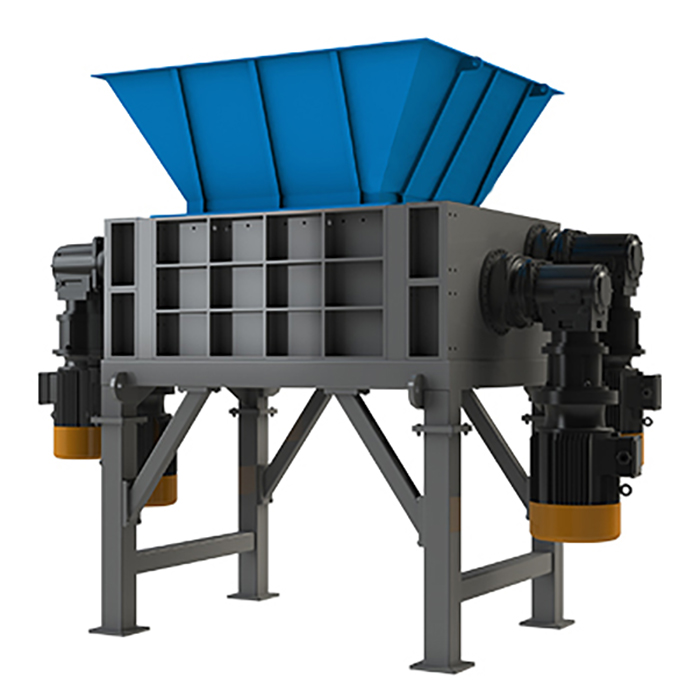

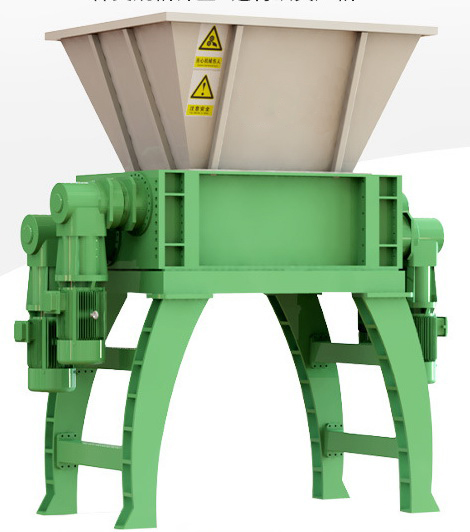

Four Shaft Shredder

The four-shaft shredder is driven by a European planetary gear reducer, and the main shafts are operated at differential speeds. The electrical system uses Siemens LOGO and PLC programming control, with functions such as automatic detection of overload protection, etc. The size of the material can be controlled, with high efficiency, low speed and low noise. The main electrical components are from brands such as Schneider, Siemens, and ABB.

Send email to us

Product Detail

Parameter

Video

Case&Effects

FAQ

Composition:

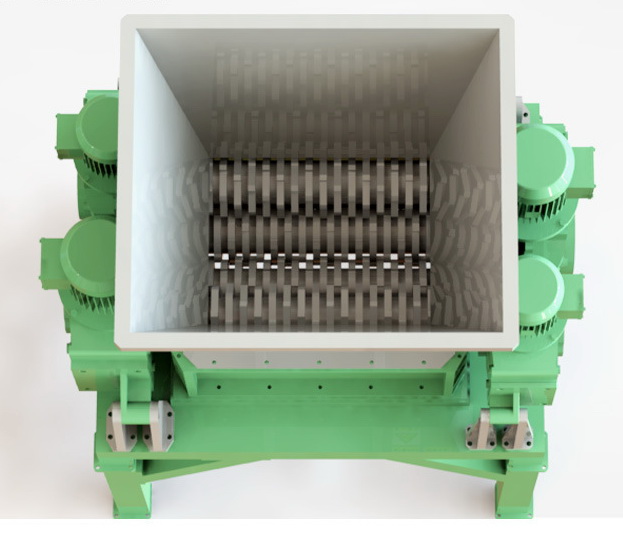

The four-axis shredder is mainly composed of 4 sets of shredding blades, a carrying box, a box bracket, a feeding system, a power system, and an electrical control system. It is mainly used to shred metal barrels, refrigerators, rubber, plastic, tires and other waste materials.

Working principle:

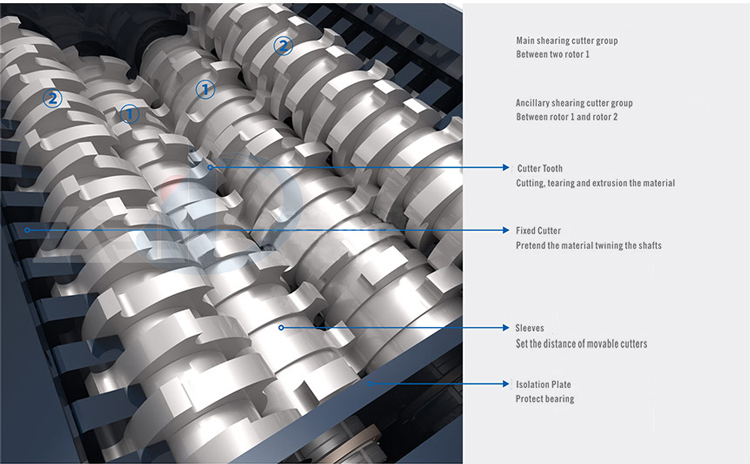

The material enters the shredding box through the feeding system. The box carries four sets of blades. The material is torn into small pieces under the combined force of tearing, squeezing, and shearing by the blades. When the size of the material is smaller than the screen hole, the material is discharged from the screen hole at the bottom of the box under the action of gravity and squeezing force. The larger material will continue to remain in the crushing chamber and be crushed until the size is smaller than the screen hole.

Technical features:

CE certification, the whole machine technology comes from Italy.
Standardized modular design, good interchangeability of parts.
The main knife is made of special alloy steel through a special process.
Auxiliary knife is made of die forging.
Good wear resistance and high strength.
The driving part adopts an intermediate gear transmission to form a differential relationship.
Screen disassembly is convenient and simple. Beautiful appearance and compact structure.

Previous: Plastic Film Shredder

Next: Cardboard Shredder

Model	Motor	Thickness of Blade	Dia. of Blade	Number of Blade	Speed of Shredder	Height of Output	Screen	Size of Shredding Cahmber	Dimensions	Weight
100130	15kW2+22kW2	50 mm	φ430	20	10-15 rpm	1000 mm	φ60	1000×1300 mm	3200x1650x2930 mm	about 11500 kg
120130	15kW2+30kW2	50 mm	φ430	24	10-15 rpm	1000 mm	φ60	1200×1300 mm	3400x1650x2930 mm	about 12500 kg
140130	15kW2+45kW2	50 mm	φ430	28	10-15 rpm	1000 mm	φ60	1400×1300 mm	3600x1650x2930 mm	about 13500 kg
180130	22kW2+55kW2	50 mm	φ430	36	10-15 rpm	1000 mm	φ60	1800×1300 mm	4000x1650x2930 mm	about 15500 kg
140160	22kW2+45kW2	50 mm	φ534	28	10-15 rpm	1400 mm	φ60	1400×1600 mm	4160x2200x3630 mm	about 17500 kg
160160	30kW2+552kW2	50 mm	φ534	32	10-15 rpm	1400 mm	φ60	1600×1600 mm	4360x2200x3630 mm	about 18500 kg

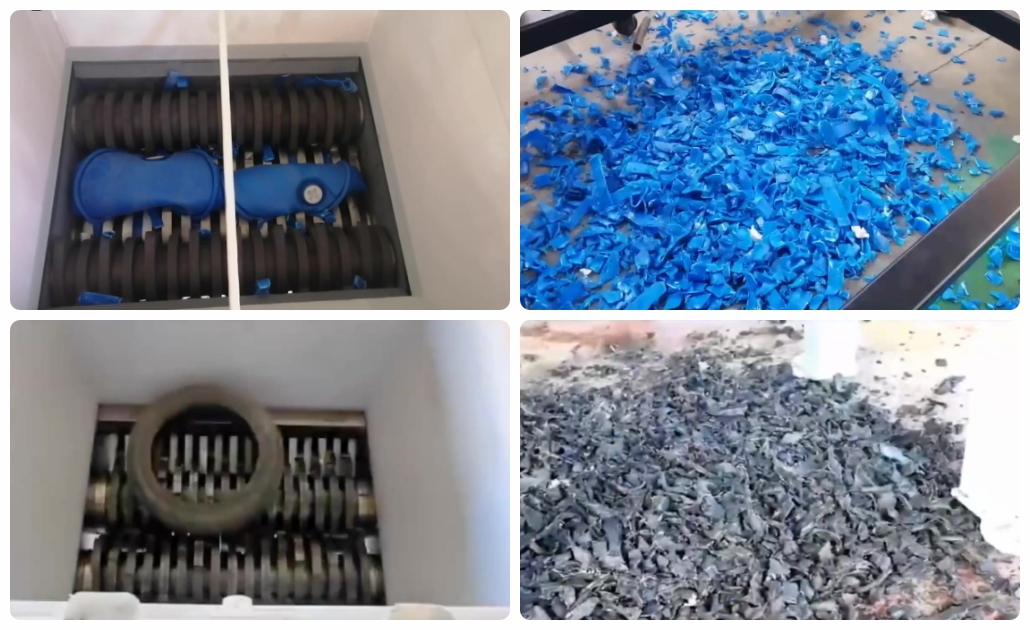

Effects for four shaft shredder:

Q1: Who are we?

A: We are Di Hai Machinery and based in Henan, China, start from 1990, sell to Southeast Asia(35.00%), Africa (20.00%), South America(20.00%), Eastern Asia(18.00%), Mid East(7.00%). There are a total of about 51-100 people in our office.

Q2: How to ensure the quality of the products used by your company?

A: All materials in our company are by national standards and design requirements, clear quality standards, strengthened supply chain management, strict control procedures, comprehensive testing and customer feedback, and improved employee quality awareness.

Q3: What can you buy from us?

Recycling machines, including baler machines, shredder machines, crusher machines, tire recycling plants, plastic recycling plants, metal recycling plants, wood recycling plants, copper recycling plants, battery recycling plants, and paper tray-making plants.

Q4: Why should you buy from us not from other suppliers?

We have 20 years of experience in design and development, With rich experience in import and export trade. Installed and debugged locally, to teach technology, training, and maintenance of equipment. Guarantee on-time delivery according to contract requirements.

Q5: What services can we provide?

Accepted Delivery Terms: FOB, CFR, EXW；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.

Q6: Why Choose Us?

Several Year’s Experience We have rich experience in equipment manufacturing and our products have a high reputation both at home and abroad.
Manufacturer, Not Dealer Factory direct sale makes the price more competitive. Customers are always welcome to visit our factory for machine tests.
Fast Delivery We promise the goods can be shipped out on the delivery date after confirmation of the order.

Q7: When we only purchase one shredding production line, can we use it to shred other scrap materials like?

A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

Q8: Which brand of motor will you use?

A: We use Siemens or other High quality well-known brand.

Q9: Will you dispatch the engineer to guide installation?

A: Yes, according to the customer’s requirement, we will dispatch engineers to guide installation and training about the operation of the machine and we also provide online remote instruction.
