Double Shaft Shredder

> Two shafts.

> High production.

> Processing is less than 2000 * 2000mm.

> Used for recycling waste materials.

> The double-shaft shredder is a widely used industrial shredder with low speed, high torque, and high throughput. It is designed to process a wide range of materials efficiently.

> It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.

> DH-Series Double shaft shredder machine can shred plastic containers, bottles, wood, paper boxes, drums, barrels, basins, blow molding, plastic pallets, etc.

> Our company has many years experience in manufacturing the double shredder machine, we supply 300~10000 kg/h capacity. We also can make it according to your requirements.


Product Detail

Parameter

Video

Case&Effects

FAQ

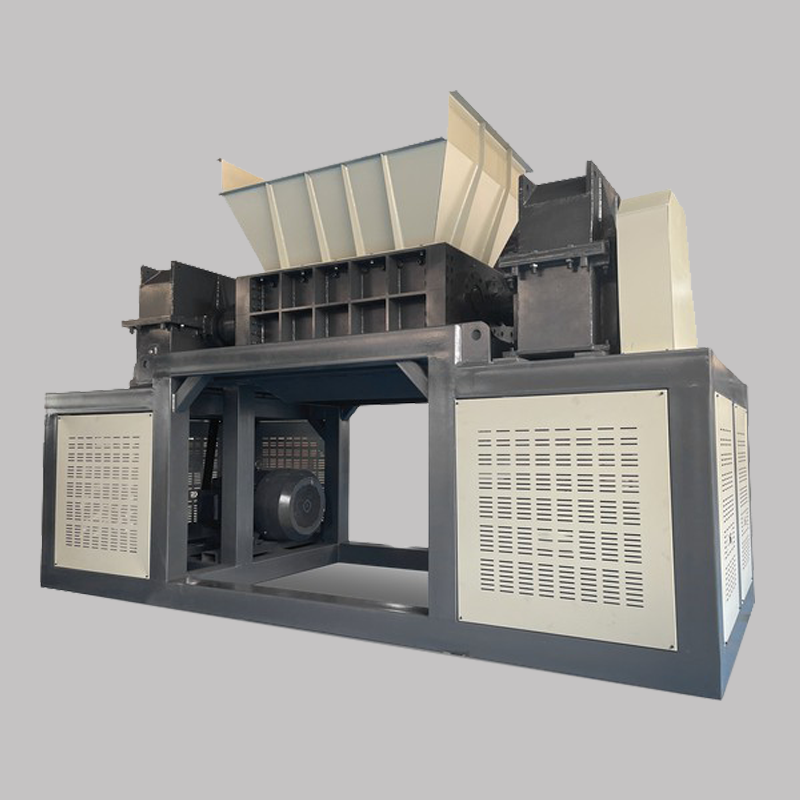

A double shaft shredder is a powerful industrial shredder machine designed to reduce the size of various materials through a shearing process. It also called twin shaft heavy duty industrial shredder, it consists of two counter-rotating shafts equipped with cutting blades. As materials are fed into the shredder, they are subjected to a high-torque, low-speed cutting action that breaks them down into smaller particles.

double-shaft-shredder

Engineered by our top experts in the shredding industry, your company can greatly benefit from the acquisition of the high-quality Industrial Shredder. This is a powerful shredder machine that provides you with excellent versatility and high performance, making it the ideal choice for your business. It is more than capable of shredding through the tougher materials, rendering them into a smaller, easier-to-manage shred size. This industrial shredder is designed to surpass your expectations, offering superior strength and optimal usage that allows you to outperform in the shredding industry. It provides improved efficiency while minimizing your footprint, allowing you to diversify your business.

Application for double shaft shredder:

RDF (Refuse-Derived-Fuel): MSW, industry waste, wood, paper, tires, plastics, carpet, textiles

Metal Scraps: Aluminum, ferrous, non-ferrous, steel drums, waste automotive

Electronics: WEEE, electronic equipment, waste household appliances

Plastic: Drums, lumps, films

metarial

Details of Double Shaft Shredder Machine

Shafts: These are the main components around which the cutting process revolves. They are typically made of high-strength steel to withstand the heavy loads involved.

Cutting Blades: Attached to the shafts, these blades are responsible for the actual shredding process. Blade design and material vary depending on the type of material being processed.

Drive System: A robust motor and gearbox provide the necessary power to operate the shafts and cutting blades.

Feeding System: This mechanism controls the rate at which material is fed into the shredder.

Discharge System: The shredded material is discharged from the shredder through this system.

1.1

Bearing seal is unique multiple combination sealing structure effectively blocks the contact of broken material and grease. The liquid material can protect the bearing, gear, ensuring continuous and stable operation of machine.

1.2

Feed hopper: high quality carbon steel plate, laser precision cutting. The optimal slope design effectively reduces feed shocks and allows for smooth feeds.

1.3

Motor: Chinese or international famous brand, 100% copper movement, strong power, long life

1.4

Reduction Gears Reducer: saving space, withstanding overload capacity. It is low energy consumption, high performance, and efficiency up to 95 or more. Small vibration, low noise, select excellent section steel material, steel cast-iron box, gear surface after high-frequency heat treatment

1.5

The blade is made of alloy tool steel, has a high hardness of quenching, more abrasion and impact resistance, longer service life, reducing the frequency of blade replacement.With a multi-teeth design,the shredding effect is significant, Modern installation is more convenient to maintain.

1.6

The shredding chamber is processed by the overall CNC, with less error and high accuracy, The shredding chamber is a modular installation and the bolt is fixed to reduce vibration and response, Arc-sharped partitions are installed on both sides of the chamber to ensure smooth discharge and increase capacity.

How does double shaft shreder work?

2.1

Discharge Out: Shredder is a full pass rate machine without screen bottom. The shredder will discharge the material continuously according to the feeding condition.

Installation: The floorspace of the shredder covers a smaller area and requires a 3-phase connection. In view of the installation of the whole machine, or retain power and shredding parts, almost no additional installation, is directly connected to the power supply. Our technician will guide the installation process.

2.2
2.3

Load: The open top allows continuous loading of waste. Fully automatic control of the PLC distributes power output according to feeding conditions. If overload occurs, the shredder will automatically flip over, and then continue to cycle.

Double Shaft Shredder Perfect for your Field

Double Shaft Shredding Machine for the Recycling Industry

Double Shaft Shredder for Logistics & Distribution Centres

Double Shaft Shredder in Large Supermarkets & City

3.1
3.2
3.3

> A double shaft shredder strategically installed in a recycling facility becomes an integral part of the working process.Like Aluminum & Copper Recycling, Battery Recycling, E-Waste Recycling, General Waste Recycling, Medical Waste Recycling, Metal Recycling, Paper Shredding, Plastic Recycling,Textiles & Carpet Recycling, Tire Recycling, Wood Recycling and so on.

> Logistics and distribution centers process huge amounts of plastic and cardboard packaging as good as received and distributed.
> In order to increase recycling value, after separating, the shredding machine can shred them into blocks,then easy to store and transportation.

> Large supermarkets and living cities handle a huge volume of packaging waste from consumer goods, food, and other perishable items.
> A shredding machine is the ideal shredder to appropriately handle large volumes of mixed recyclable waste. The process can easily be managed by regular staff.

Features & Benefits

Lowest Cost per Ton to Buy

4.1

1. Customize your shredder line to meet your unique requirements
2. Invest in more equipment than you need
3. Get the right shredder for the job

Lowest Cost per Ton to Operate

4.2

1. High tolerances and precision cutting requires less horsepower
2. Built for smooth and efficient operation to last you decades
3. Engineered to be simple yet robust
4. More run time with less maintenance and hassle
5. Re-sharpenable and long-lasting blades

Lowest Cost per Ton to Maintain

4.3

1. Less mechanical interference for more machine up-time, more throughput, and fewer headaches
2. Leverage your own maintenance team- No specialty tools required
3. Quick blade change-out time
4. Blades last for roughly 1 million tires before needing sharpened

Optional Accessories for Double Shaft Shredder

In order to experience the optimal performance of the Industrial Shredder, we offer a wide variety of available optional accessories. These components, which include the hopper, in-feed conveyor, out-feed conveyor, and stand, are designed to enhance the overall performance of the industrial shredder so that it works at maximum capability. For more information on the other types of optional accessories that we have available, you can contact the sales team, who can help create the ideal shredding solution to your business.

5.1

Heavy-duty Seal Hopper

5.3

Observation Walk

5.5

Metal Separator

5.22

Plate Chain Conveyor

5.4

Hydraulic Press Design

5.6

Pulse Dust Collector


  • Previous:
  • Next:

  • Model Cutter size Power Number of knives Reducer Rotate speed Dimensions
    DH-600 Ф200*10 15kw 48 400 18-25 1.45*0.87*2-2
    Ф200*20 15kw 24 400 18-25 1.45*0.87*2-2
    DH-800 Ф200*20 15kw*2 32 400*2 18-25 2.15*0.87*2.2
    Ф300*30 30kw*2 18 650*2 18-25 3 4*12*22
    DH-1000 Ф300*25 30kw*2 32 650*2 18-25 3.4*1.25*2.2
    Ф300*30 30kw*2 27 650*2 18-25 3.4*1.25*22
    Ф400*40 45kw*2 20 750*2 18-25 3.4*1.25*2.2
    DH-1200 Ф400*30 55kwv*2 38 650*2 18-25 4.15*1.25*2.2
    Ф400*40 55kw*2 28 750*2 18-25 4.15*1.25*2.2
    DH-1500 Ф400*30 75kw*2 48 750*2 18-25 4 15*1.25*2.2
    Ф400*40 75kw*2 36 750*2 18-25 4.15*1.25*2.2
    Ф400*50 75kw*2 28 850*2 18-25 4.15*1.25*2.2
    DH-2000 Ф530*50 90kwv*2 38 850*2 18-30 5.25*1.78*2.2
    Ф600*60 90kwv*2 31 850*2 18-30 5.25*1.78*22

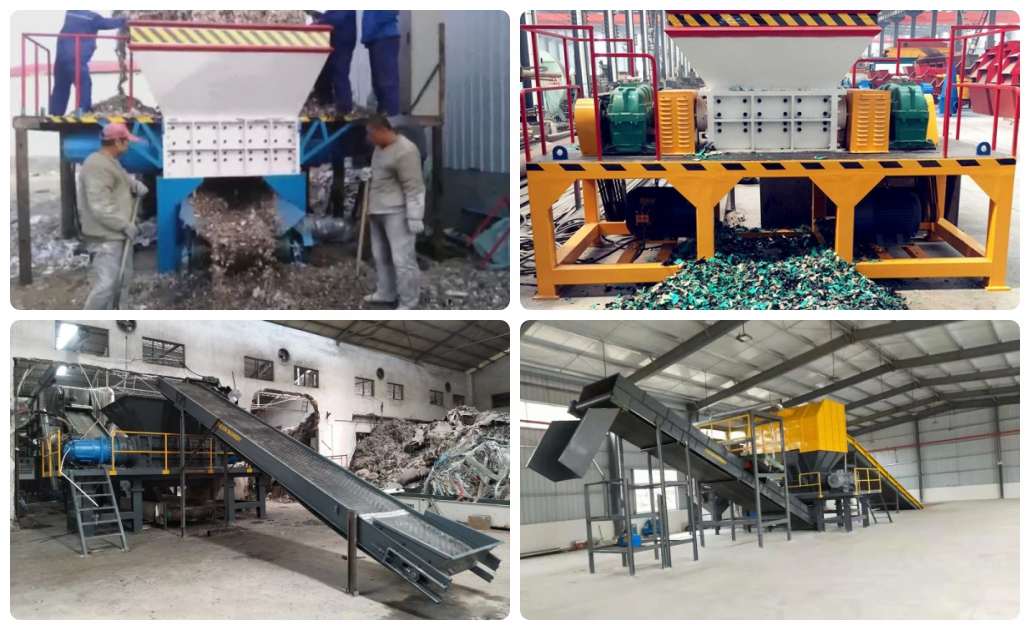

    Working Site:

    0

    Q1: Who are we?

    A: We are Di Hai Machinery and based in Henan, China, start from 1990, sell to Southeast Asia(35.00%), Africa (20.00%), South America(20.00%), Eastern Asia(18.00%), Mid East(7.00%). There are a total of about 51-100 people in our office.

    Q2: How to ensure the quality of the products used by your company?

    A: All materials in our company are by national standards and design requirements, clear quality standards, strengthened supply chain management, strict control procedures, comprehensive testing and customer feedback, and improved employee quality awareness.

    Q3: What can you buy from us?

    Recycling machines, including baler machines, shredder machines, crusher machines, tire recycling plants, plastic recycling plants, metal recycling plants, wood recycling plants, copper recycling plants, battery recycling plants, and paper tray-making plants.

    Q4: Why should you buy from us not from other suppliers?

    We have 20 years of experience in design and development, With rich experience in import and export trade. Installed and debugged locally, to teach technology, training, and maintenance of equipment. Guarantee on-time delivery according to contract requirements.

    Q5: What services can we provide?

    • Accepted Delivery Terms: FOB, CFR, EXW;
    • Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
    • Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
    • Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.

    Q6: Why Choose Us?

    • Several Year’s Experience We have rich experience in equipment manufacturing and our products have a high reputation both at home and abroad.
    • Manufacturer, Not Dealer Factory direct sale makes the price more competitive. Customers are always welcome to visit our factory for machine tests.
    • Fast Delivery We promise the goods can be shipped out on the delivery date after confirmation of the order.

    Q7: When we only purchase one shredding production line, can we use it to shred other scrap materials like?

    A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

    Q8: Which brand of motor will you use?

    A: We use Siemens or other High quality well-known brand.

    Q9: Will you dispatch the engineer to guide installation?

    A: Yes, according to the customer’s requirement, we will dispatch engineers to guide installation and training about the operation of the machine and we also provide online remote instruction.
